Overview

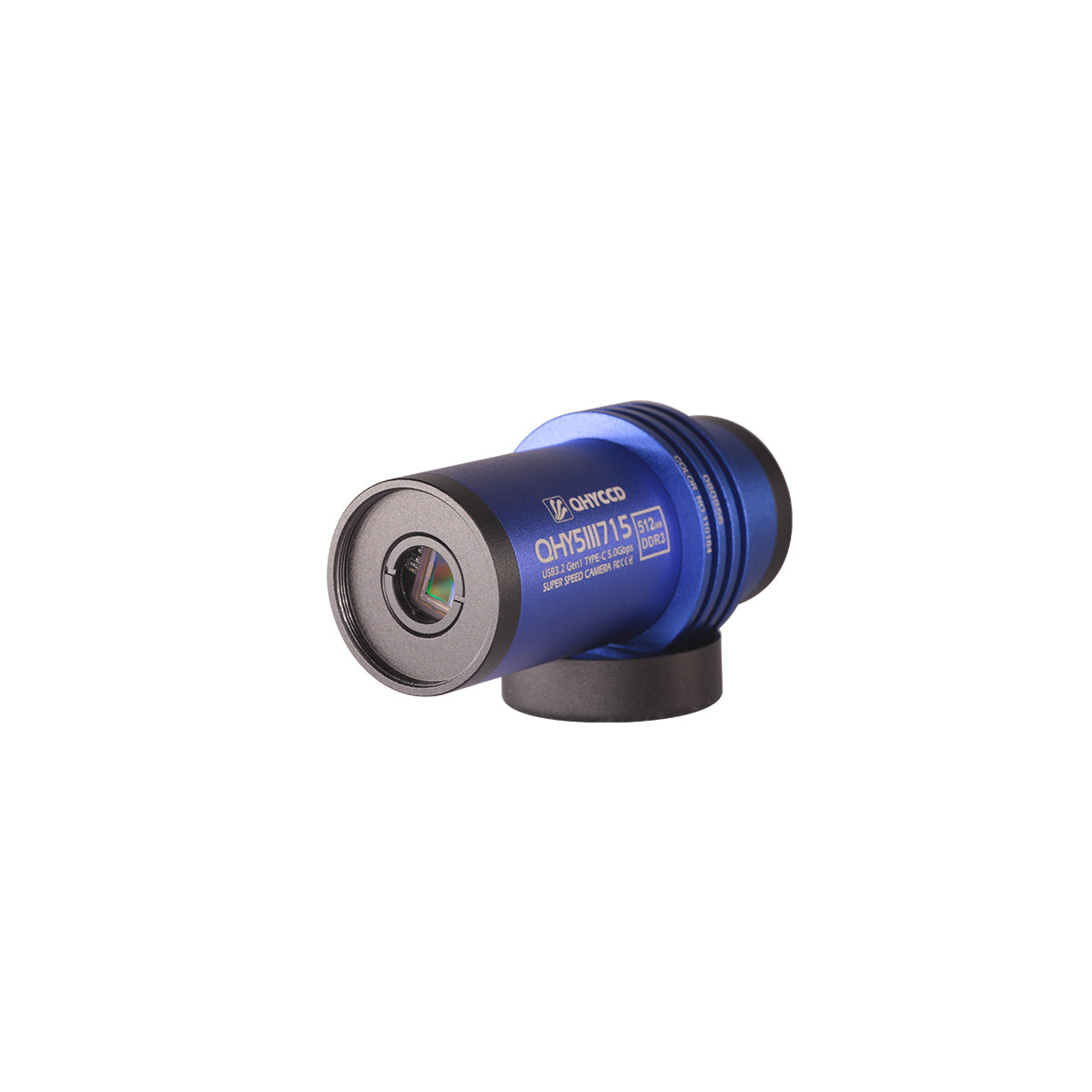

The QHY5III715C is an ultra-high resolution, back-illuminated color camera with extremely low read noise. The sensor has a 1/2.8-inch optical format, similar to the QHY5III462C. However, the QHY5III715C has four times as many pixels as the QHY5III462C, offering 4K resolution with 1.45μm pixels.

This makes the new QHY5III715C ideal for smaller, short focal length refractors. The exceptionally small pixels provide a field of view (FOV) of less than 1 arcsecond at focal lengths of 12 inches (300mm) or longer. The QHY5III715C inherits all of the updates and improvements of the QHY5III Series Ver. 2 line of cameras.

Extended Near-Infrared Sensitivity

The latest sensors feature deeper pixel wells, enhancing sensitivity to red and near-infrared (NIR) light. These sensors achieve peak NIR sensitivity nearly equal to visible light.

512MB DDR3 Buffer

The QHY5III (Ver. 2) cameras include a 512MB DDR3 buffer, doubling the memory of many deep-sky astrophotography cameras with 256MB. This reduces computer transmission load, ideal for high-speed planetary imaging.

New Front-End Design

The redesigned QHY5III (Ver. 2) cameras offer improved compatibility with a slim 8mm BFL, making them easy to integrate with off-axis guiders (OAGs). The 1.25-inch threaded adapter supports filters and interchangeable top glass allows seamless use of CS or C-mount lenses. A 1.25-inch filter wheel adapter connects monochrome cameras to QHYCFW3-S filter wheels.

USB 3.2 Gen 1 Type-C Interface

Upgraded to USB 3.2 Gen 1 Type-C, these cameras offer better durability and flexibility than the previous USB 3.0 Type-B. Use high-quality cables to avoid performance issues.

Universal Guiding Interface

The cameras now feature an ST-4 compatible guiding interface, replacing proprietary designs, allowing easy replacement of guiding cables at low cost.

Indicator LED

An indicator LED at the back signals camera status using different colors for diagnostics. It remains off during normal operation to prevent light contamination.
