QHY miniCAM8 Mono Camera Combo
QHY
Couldn't load pickup availability
Share

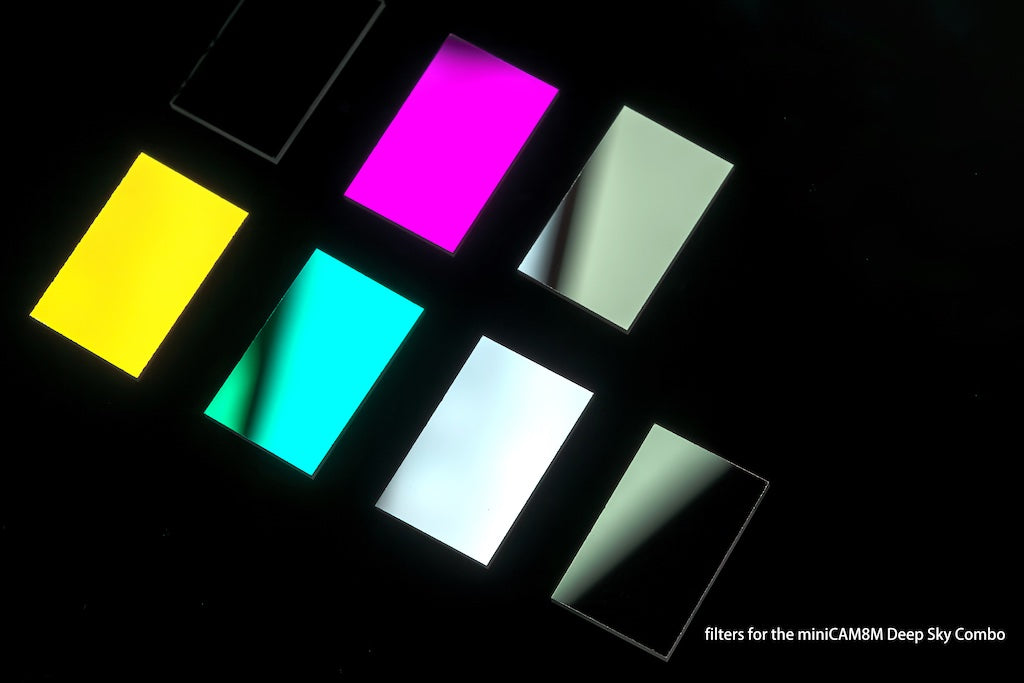

A LRGB and narrowband (SHO) filter set for the QHY MiniCam8 Mono camera.
The package includes 7 filters: Luminance, Red, Green, Blue, H-Alpha (7nm), OIII (7nm) and SII 7nm)

Mono Camera Details
- What's in the Box
- Specifications
What's in the Box
- Camera
- 12V 5A Power Adapter
- Power Cable
- 12V Self-Locking Power Cable
- 1.3m USB3.0 Cable
- 1.25-inch Extension Ring
- Desiccant Tube
- Lens Mounting Clamp
- Screwdriver
- Camera Packaging Bag
- Luminance Filter
- Red Filter
- Green Filter
- Blue Filter
- H-Alpha Filter (7nm)
- OIII Filter (7nm)
- SII Filter (7nm)
Specifications
| Attribute | Details |
|---|---|
| Sensor | Sony IMX585 |
| Sensor Type | Mono |
| BSI/FSI | Back Side Illuminated |
| Sensor Size | 1/1.2 inch |
| Pixel Size | 2.9μm x 2.9μm |
| Total Pixel Area | 3856 x 2180 |
| Effective Pixels | 8 MP |
| Full Well Capacity | 54ke- |
| Readout Noise | 0.76 – 7.8 e- |
| A/D | 12bit (output as 16-bit) |
| Full Frame Rates | 41.5FPS@8bit, 23.5FPS@16bit |
| Exposure Time Range | 11μs-900sec |
| Shutter Type | Electronic Rolling Shutter |
| Cooling System | Dual Stage TEC cooler |
| Weight | 480g |
