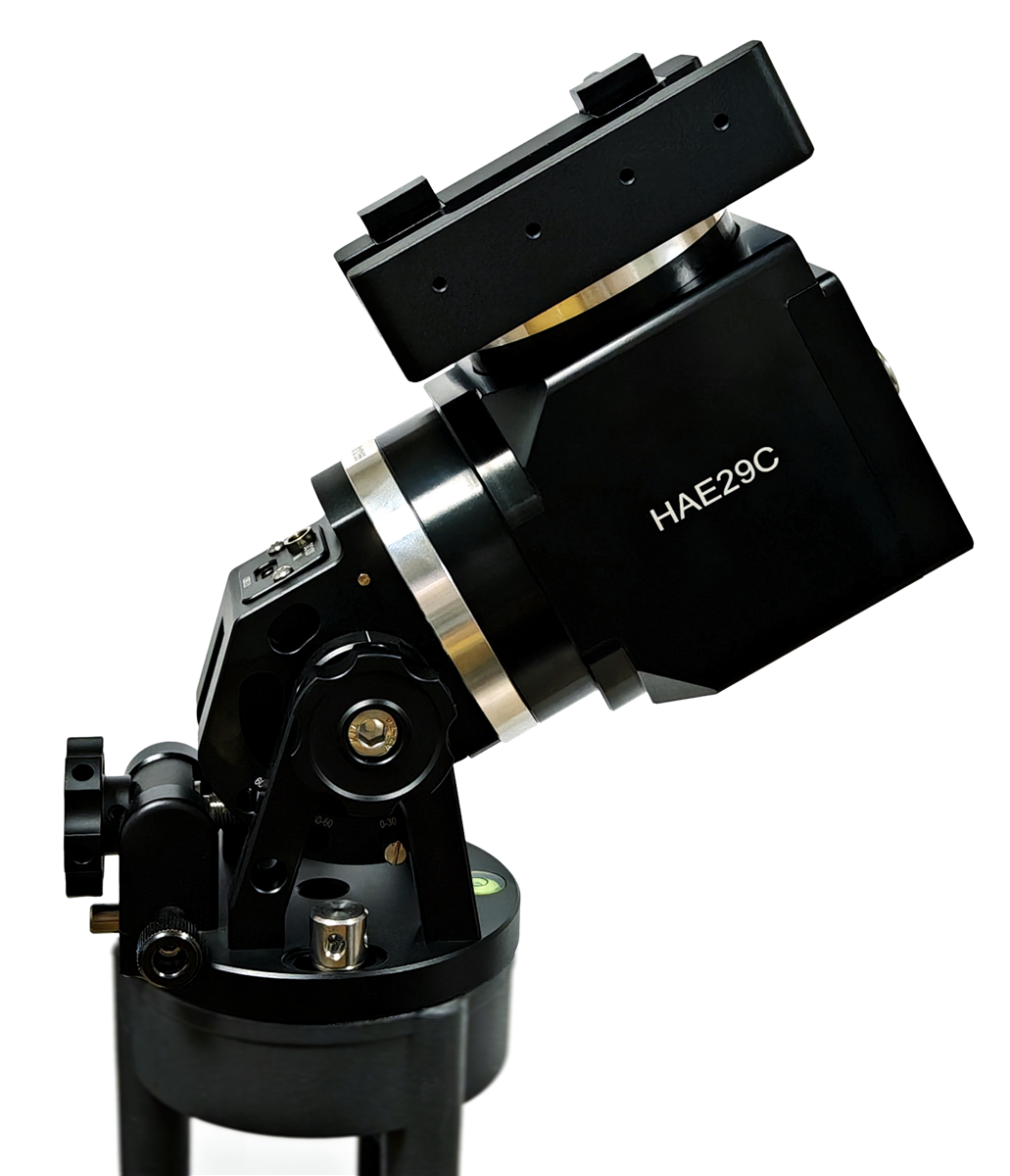

iOptron HAE29C Dual AZ/EQ Strain Wave Mount
iOptron HAE29C Dual AZ/EQ Strain Wave Mount
Couldn't load pickup availability
Introducing the AZ/EQ dual mount HAE29C! This light weight, high payload little titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at 3.7 kg with a payload capability 13.5 kg, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29 brings this vision to reality.
Utilizing state of the art strain wave gear technology for both RA and DEC movement, the HAE29s deliver unparalleled weight to payload efficiency. Its black anodized metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction brake that allows the mount to stop safely.
An HAE29 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a Smartphone/Tablet via iOptron Commander Lite or an App like Sky Safari; or a Raspberry Pi device via INDI driver, “C” models (internal main board versions) with built-in Wi-Fi allow for external control without need for a handset.
Those who prefer using a handset, the optional 8411 Go2Nova® controller is available. Both versions of the HAE29C (std. or EC) have on saddle USB and 12V ports for easier cable management. A quality form fit case is included.
Features
- Advanced strain wave gear system technology
- Payload capacity of 13.5 kg with the mount weight of 3.7 kg (include dovetail saddle)
- CNC machined
- Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
- 360 second gear period
- Dual saddle (Vixen and Losmandy-D styles)
- Built in zero position search and locator
- Integrated ST-4 autoguiding port
- Built-in Wi-Fi
- USB port for firmware upgrade and computer control
- Carrying case
- Two year warranty
Tripod Option
add an iOptron Carbon Fibre Tripod with your mount.
Tech Specs
| Mount | Strain Wave Altazimuth/Equatorial Mount |
| RA gear system | Strain Wave Gear |
| DEC gear system | Strain Wave Gear |
| Reduction ratio | RA 480:1, DEC 360:1 |
| Payload w/o CW * | 13.5 kg |
| Mount weight | 3.7 kg with dovetail saddle |
| Payload/Mount weight | 3.65 |
| Payload with CW* | 18 kg |
| Period | 360 second |
| Drive motor | Stepper motor |
| Structure Material | All metal, CNC machined |
| Exterior finish | Anodized black |
| Level indicator | Level bubble |
| Control system | GOTONOVA/Commander |
| Handset | Optional Go2Nova® 8411 |
| Tracking | Automatic |
| Maximum slew speed | 6º/sec |
| Power consumption | 0.6A(Tracking), 1A(GOTO) |
| Power | DC12V-5A (5.5/2.5mm DC plug) |
| AC adapter | 100V ~ 240V (included, indoor use only) |
| Power off brake | Electronic friction brake |
| Wi-Fi | Built-in |
| Communication port | Yes (Wi-Fi and USB) |
| Autoguide port | Yes (ST-4 compatible) |
| Firmware upgrade | Yes |
| Dovetail saddle | Vixen & Losmandy |
| Tripod | Optional |
| Counterweight Shaft | SS Φ20X200mm, 3/8"-16 thread (Optional) |
| Counterweight | 4.5kg(Optional) |
| Operation temperature | -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC) |
| Warranty | Two year limited |
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
