iOptron CEM26 GoTo EQ Mount without Polarscope

1 2
$2,499.00 NZD
$2,499.00 NZD
Reduced Sold out
Taxes included. Shipping calculated at checkout.

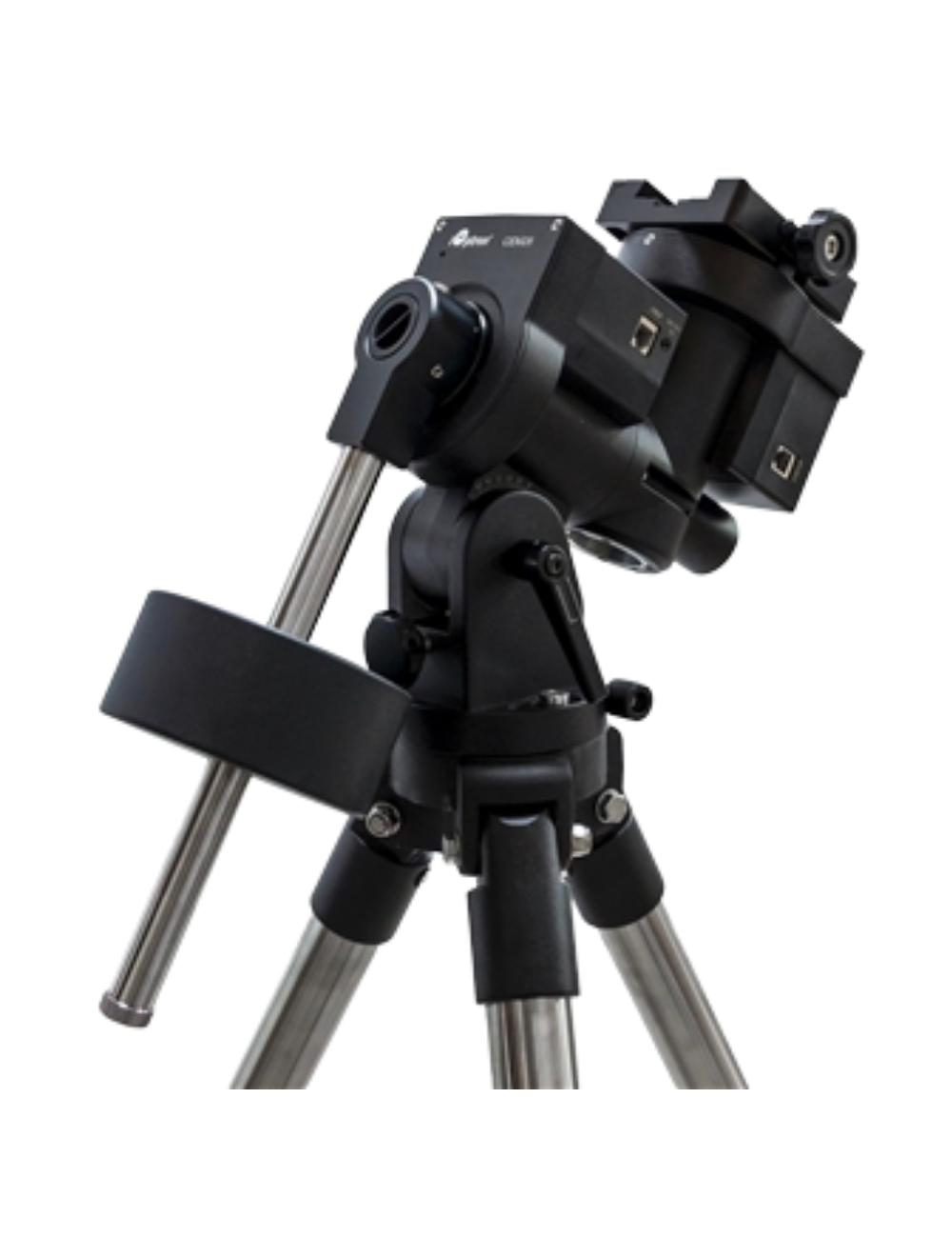

Introducing iOptron's latest CEM26 center-balance equatorial mounts, designed with portability in mind. Weighing only 4.5kg, this compact mount can support a 12kg payload, boasting an impressive 2.6 mount weight to payload ratio. The CEM design centers the mount and payload weight directly on the tripod's center, ensuring natural stability.

In addition to its natural stability, the CEM26 offers features for convenience and functionality, including a positive lock gear engagement system, built-in Wi-Fi for seamless connectivity, and recordable permanent periodic error correction (PPEC) to repeat optimal PEC training sessions. The mount also delivers precise pointing and accurate tracking, setting a new standard for compact equatorial mounts.

The center-balanced design features an adjustable counterweight bar to prevent obstruction with the tripod and enables quick and accessible polar alignment since the polar scope is unobstructed by the declination shaft.

The CEM26 also boasts the latest advanced GOTONOVA® GOTO technology, making it one of the most powerful and accurate GOTO mounts available, with a database of over 212,000+ objects. The Go2Nova® Hand Controller is user-friendly, with a large 4-line LCD screen simplifying the process of setting telescopes and locating objects.

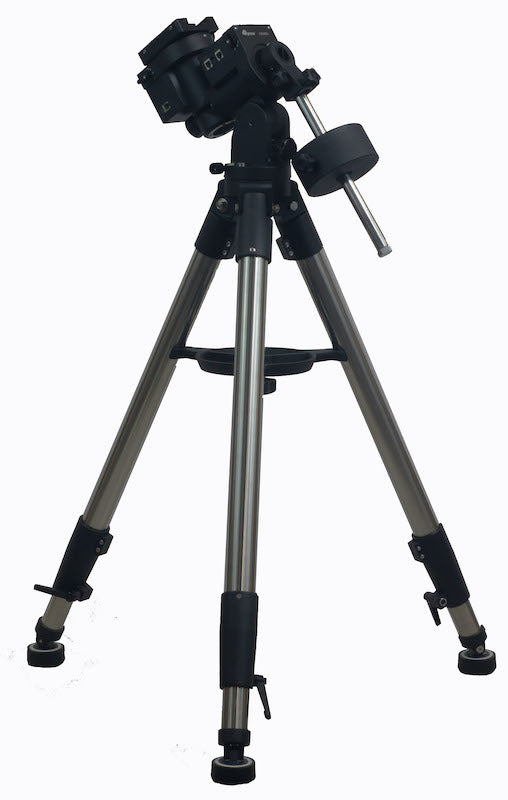

The CEM26 is accompanied by a 1.5" heavy-duty stainless steel tripod, but note that a polar scope is not included.

View full details
MountCenter-Balanced Equatorial Mount
Payload12kg, excluding counterweight
Mount Weight4.5kg
Payload/Mount Weight2.60
Structure MaterialAll metal, Casting + CNC machined
Exterior FinishPowder coating
Periodic Error (PE)<±10 arcsec
PECYes, Permanent PEC
Worm Period600 sec
Right Ascension Worm WheelΦ88mm, 144 teeth aluminum
Declination Worm WheelΦ88mm, 144 teeth aluminum
Right Ascension Axis ShaftΦ35mm steel
Declination Axis ShaftΦ35mm steel
Right Ascension BearingΦ55mm ball bearing
Declination BearingΦ55mm ball bearing
Worm GearsΦ15.2mm, Brass
Motor Drive1.8º stepper motor, 128X microdivision
Resolution0.17 arc seconds
TransmissionSynchronous belt
Latitude Adjustment Range0º ~ 60º
Azimuth Adjustment Range± 6º
Polar ScopeNot included
Level IndicatorLevel bubble
Hand ControllerGo2Nova® 8409 with ~212,000 objects database
TrackingAutomatic
Slew Speed1×,2×,8×,16×,64×,128×,256×,512×,MAX(6º/sec)
Power Consumption0.5A (Tracking), 0.8A (GOTO)
Power Requirement12V DC, 5A
AC Adapter100V ~ 240V (included)
Power-down MemoryYes
Wi-FiBuilt-in
Communication PortYes (Wi-Fi and USB)
Autoguide PortYes (ST-4 compatible)
Firmware UpgradeYes
PC Computer ControlYes (ASCOM)
Counterweight ShaftΦ20X306mm (M16), Stainless Steel
Counterweight4.5kg
Tripod1.5" Stainless Steel (5kg)
Dovetail Saddle3.8" Vixen-style, centre adjustable
Hard CaseNot Included
GPSOptional external 32-channel GPS
AutoguidingOptional external iGuider 1
Operation Temperature-10ºC ~ 40ºC
  • Unique design, center-balanced equatorial mount (CEM) for maximum payload and minimum mount weight
  • Ideal for both visual observation and astrophotography
  • Low periodic error (< ± 10 arc seconds)
  • Payload of 12 kg with the mount-only weight of 4.5 kg
  • CNC machined and cast metal body
  • Spring-loaded gear system
  • Large easy-to-use quick-lock gear clutches
  • Adjustable counterweight shaft for 0º latitude operation
  • Stepper motor with low power consumption
  • Integrated iOptron iPolar™ electronic polar scope
  • Polar alignment routine for those who can’t see the Pole Star
  • Go2Nova® 8409 controller with Advanced GOTONOVA® GOTO Technology
  • Integrated ST-4 autoguiding port
  • Built-in Wi-Fi
  • USB port for firmware upgrade and computer control
  • Standard 1.5 inch heavy-duty stainless steel tripod (5kg)
  • Die-cast metal tripod spreader with accessory tray
  • Hard carrying case
  • Optional 32-channel Global Positioning System (GPS)
  • Optional iGuider™ autoguiding system #3360
